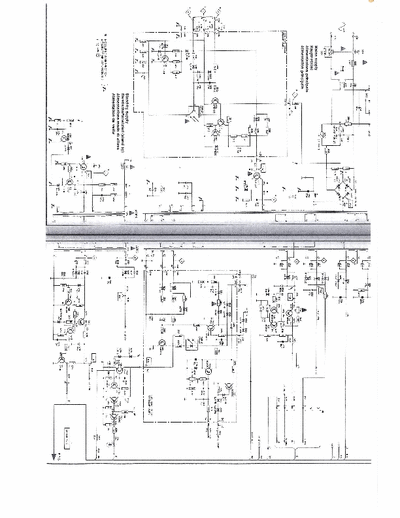

Preview for : Philips FL1.x This file contains the full schematics of a Philips FL1.0 power supply, including the plug-in SOPS controller that is usually found back as a \"black-box\" module in the service manual of the FL x.y chassis. However there were several versions of this plug-in module, only minor differences are expected from versions to versions and the schematics provided here should be very helpful in debugging any FLx.y SOPS. Note the plug-in module is considered by Philips Service as not-serviceable and is part of the expensive SOPS kit however my experience is that servicing the module, using the schematics, is no problem.
